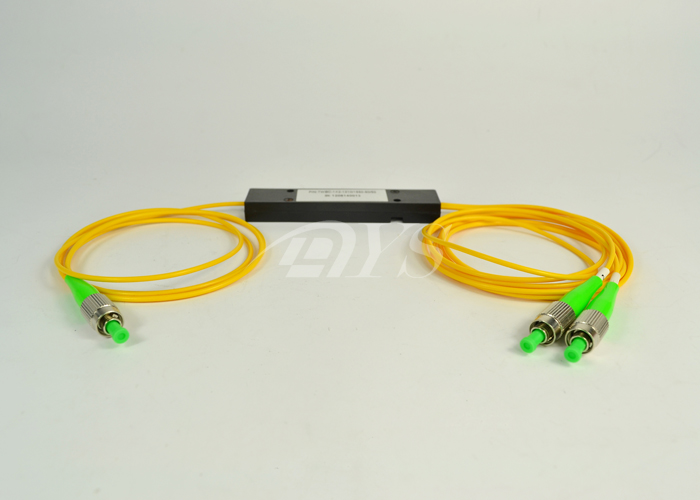

Fiber Optical with FC /APC Connector 1x2 FBT Splitter coupler
Quick Details
-
Place of Origin: Guangdong, China (Mainland)
-
Brand Name: DYS/OEM
-
Model Number: 1*2 FBT Splitter
-
Connector: FC/APC
-
Output Connector Type: LC ,ST,SC,FC
-
Length: 1m ,1.5m, 2m or customized length
-
Ferrule Polish: APC,UPC,PC
-
Wavelength: 1310/1550 nm
-
Coupling radio: 1/99 to 50/50
-
Directivily: > 50dB
-
PDL: <0.1dB
Application:
1. FTTX networks
2. PON networks
3. CATV links
4. Data Communication
Types:
1. Basic type PLC splitter
2. SFF type PLC splitter
3. 900um Fan-out Type PLC Splitter
4. Cassette type PLC splitter Module
5. Rack type PLC splitter Module
6. Tray assembly PLC splitter Module
7. Flat Quick-Connect Termination Type PLC Splitter Module
Feature:
1. Low Insertion Loss
2. Low Polarization Dependent Loss
3. Wide Operation Wavelength
4. Wide Operation Temperature
5. High Stability and Reliability
6. Telcordia GR-1209 and GR-1221 Compliance
7. YD/T 2000.1-2009 Compliance (TLC Product Certificate Compliance)
Specification:
| Parameter | Unit | 1×2 | 1×4 | 1×6 | 1×8 | 1×12 | 1×16 | 1×32 | 1×64 |
| | Premium Grade |
| Insertion Loss at 23°C | Typ. | dB | 3.9 | 6.8 | 9.3 | 10.0 | 12.1 | 13.2 | 16.5 | 20.0 |
| Max | dB | 4.0 | 7.0 | 9.6 | 10.4 | 12.6 | 13.5 | 16.8 | 20.5 |
| Channel Uniformity | Max | dB | 0.6 | 0.8 | 1.0 | 1.0 | 1.6 | 1.6 | 1.6 | 2.0 |
| PDL | Typ. | dB | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.2 | 0.2 |
| Max | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| | Standard Grade |
| Insertion Loss at 23°C | Typ. | dB | 4.0 | 7.0 | 9.5 | 10.4 | 12.4 | 13.6 | 17.0 | 20.5 |
| Max | dB | 4.2 | 7.3 | 10.0 | 10.6 | 12.8 | 13.8 | 17.1 | 20.8 |
| Channel Uniformity | Max | dB | 0.6 | 0.8 | 1.0 | 1.0 | 1.0 | 1.4 | 1.6 | 2.0 |
| PDL | Typ. | dB | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.2 | 0.3 |
| Max | dB | 0.2 | 0.3 | 0.3 | 0.2 | 0.3 | 0.3 | 0.3 | 0.5 |
| Return Loss | Min | dB | 55 (Premium Grade)/50 (Standard Grade) |
| Directivity | Min | dB | 55 |
| Operation Wavelength | nm | 1260~1650 |
| Operation Temperature | °C | -4-~+85 |
| Storage Temperature | °C | -4-~+85 |
| Fiber Type | - | G.657A or Customized |
Competitive Advantage
DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
