Product description
Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use.
Features
1.Low Insertion loss and Low PDL
2.Uniform power splitting
3.High reliability
4.Excellent environmental stability
5.Compact size and various package
Applications
1.FTTx Systems
2.Digital, hybrid and AM-Video systems
3.LAN,WAN and Metro Networks
4.CATV systems
5.Other applications in fiber optic systems
Pecifications and Models:
| Model | Output tube diameter | Inlet/ outlet fiber length | Pipe Sizes |
| 1*2&2*2 PLC splitter | 0.25mm/0.9mm | 1M | 4mm*7mm*50mm |
| 1*4&2*4 PLC splitter | 0.25mm/0.9mm | 1M | 4mm*7mm*50mm |
| 1*8&2*8 PLC splitter | 0.25mm/0.9mm | 1M | 4mm*7mm*60mm |
| 1*16&2*16 PLC splitter | 0.25mm/0.9mm | 1M | 4mm*12mm*60mm |
| 1*32&2*32 PLC splitter | 0.25mm/0.9mm | 1M | 6mm*20mm*80mm |
| 1*64&2*64 PLC splitter | 0.25mm/0.9mm | 1M | 6mm*40mm*100mm |
Mechanical and environmental characteristics:
| Projects | Parameter |
| Operating temperature | -25℃~+40℃ |
| Storage temperature | -25℃~+55℃ |
| Relative humidity | ≤85％(+30℃) |
| Air pressure | 70Kpa~106Kpa |
PLC Splitter performance:
1×N PLC Splitter (Measured at room temperature and excludes connector loss)
| type | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength(nm) | 1260-1650 |
| Insertion loss(dB) | Max | 3.8 | 7.2 | 10.2 | 13.5 | 16.5 | 20.5 |
| Loss uniformity(dB) | Max | 0.5 | 0.6 | 0.8 | 1.0 | 1.5 | 2.0 |
Return Loss(dB) | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 |
Polarization Dependent Loss(dB) | Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
Directivity(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 |
| Fiber Type | Corning smf-28e or customer designation |
| Wavelength Dependent Loss(dB) | Max | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 |
| Temperature correlation loss-40～85℃(dB) | Typical value | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 | 0.4 |
| Max | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Working Temperature(℃) | -40～85℃ |
| Storage Temperature(℃) | -40～85℃ |
2×N PLC Splitter (Measured at room temperature and excludes connector loss)
| type | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
Operating Wavelength(nm) | 1260-1650 |
| Insertion loss(dB) | Max | 4.0 | 7.4 | 10.5 | 13.9 | 17.0 | 20.5 |
| Loss uniformity(dB) | Max | 0.5 | 0.6 | 0.8 | 1.0 | 1.5 | 2.0 |
Return Loss(dB) | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 |
Polarization Dependent Loss(dB) | Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
Directivity(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 |
| Fiber Type | Corning smf-28e or customer designation |
| Wavelength Dependent Loss(dB) | Max | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 |
| Temperature correlation loss-40～85℃(dB) | Typical value | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 | 0.4 |
| Max | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Working Temperature(℃) | -40～85℃ |
| Storage Temperature(℃) | -40～85℃ |
Competitive Advantage
DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; And good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
Product Tags:
|
|

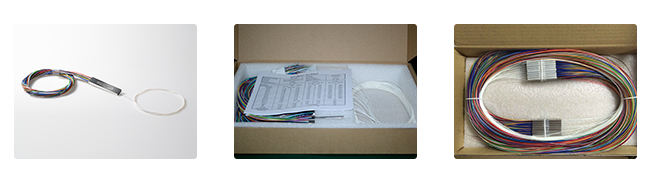

1x16 mini type PLC splitter without connector Optical Fiber Splitter passive optical splitter Images
|
