MU - LC / UPC G657A2 Optical Fiber Patch Cord Single Mode Low Insertion Loss

Name: MU LC UPC G657A2 Optical Fiber Patch Cord Single Mode Low Insertion Loss
Brand: DYS/OEM
Price: 1 USD

Wholesale MU - LC / UPC G657A2 Optical Fiber Patch Cord Single Mode Low Insertion Loss from china suppliers

Brand Name : DYS/OEM

Model Number : MU-LC/UPC

Certification : IS09001-2015.ROHS

Place of Origin : Zhejiang, China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T or L/C,Western Union

Supply Ability : 500000PCS / Month

Delivery Time : 3days

Packaging Details : Individual box or according to customer's request

Connector Type : MU-LC/UPC

Fiber jacket : 5.0mm

Color : yellow

Return Loss : >50db

Contact Now

MU - LC / UPC G657A2 Optical Fiber Patch Cord Single Mode Low insertion loss

Fiber optic patch cord is available in both singlemode and multimode versions
Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC, UPC, APC profile and convex spherical end
These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability

Features:

Low insertion loss and back reflection loss
Ferrule end surface pre-domed
Excellent mechanical endurance
Good in repeatability
Good in exchange
Green production, CE, RoHS standard

Applications:

Telecommunications
CATV, LAN, MAN, WAN, test and measurement
Military industry
Medical

Parameter
Mode		Single mode	Multimode
Polish		PC, APC	PC
Insertion Loss	Standard	≤0.7dB	≤0.5dB
	Elite Low Loss	≤0.35dB	≤0.3dB
Return Loss		PC≥50dB; APC≥60dB	≥30dB
Test Wavelength		1310/1550nm	850/1310nm
Durability(500 Matings)		≤0.2dB
Operating Temperature		-20℃~+70℃
Storage Temperature		-40℃~+85℃
Fire Resistant		IEC 60794-2-30
Standards-Compliant		ROHS,IEC and GR-326
Specification
Fiber Type		OS2, OM1, OM2, OM3, OM4
Cord type		8, 12, 24 cores
Cable diameter		250um, 900um or Customized
Cable jacket		LSZH, OFNR, OFNP
Length(M)		0.35m, or Customized

MU - LC / UPC G657A2 Optical Fiber Patch Cord Single Mode Low Insertion Loss

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.

Product Tags:

single mode fiber patch cables

multimode fiber optic cable

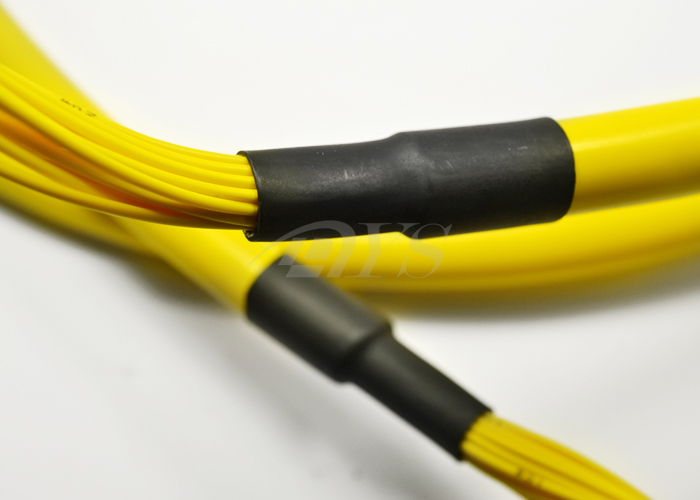

MU - LC / UPC G657A2 Optical Fiber Patch Cord Single Mode Low Insertion Loss Images
