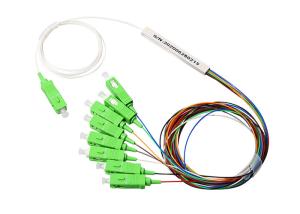

1x8 Fiber Optic PLC Splitter Mini Steel Tube Type 0.9mm

Product Categories
SHENZHEN DYS FIBER OPTIC TECHNOLOGY CO.,LTD
Contact Now

1x8 Fiber Optic PLC Splitter Mini Steel Tube Type 0.9mm

Brand Name : DYS/OEM

Model Number : PLC splitter, 1*8 Mini steel Tube plc splitter

Certification : IS09001-2015.ROHS

Place of Origin : shenzhen

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T or LC, D/A, D/P, Western Union, MoneyGram

Supply Ability : 500000PCS / Month

Delivery Time : 3-5 work days

Packaging Details : 1pcs/box

Connector Type : SC APC

Fiber Type : G657A1

Wavelength : 1260~1650

Operating temperature : -40℃ to 85℃

Fiber diameter : 0.9mm

Parameters : ≥55dB

Dimension : ≥1.0m

Type : 1x8

Splitter : 1x8 splitter

Contact Now

Factory Price 1x8 Fiber Optic PLC Splitter Mini Steel Tube Type 0.9mm

SC / APC Connector 1x8 Fiber Optic PLC Splitter / Coupler

Product name PLC Optic Splitter Product Type Mini steel tube type
Product Model PLC SC/APC 1:8 Optical Connector SC/FC/LC/ST

1 × N PLC Optic Splitter Specification
OperatingWavelength(μm) 1260~1650
Port Configuration 1×2 1×4 1×8 1×16 1×32
Insertion Loss (dB) 3.6 7.5 10.2 13.5 16.9
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5
Polarization Dependent Loss (dB) 0.2 0.2 0.2 0.25 0.3
Wavelength Dependent Loss (dB) 0.3 0.3 0.3 0.5 0.5
Temperature Dependent Loss(-40~85) (dB) 0.4 0.4 0.4 0.5 0.5
Returm Loss (dB) 55/50
Operating Temperature (℃) -40~+85
Directivity (dB) ≥55
Storage Temperature (℃) -40~+85

Overview - plc splitter

This optical splitter use Planer Light wave Circuit (PLC) technology for split ratio 2, 4, 8,16, 32 and 64. Optical splitter micro tube type refers to the port 0.9 mm slip-on fiber multi channel direct output with a compact design and easy to use.Application for FTTXnetwork, LAN/WAN or CATV network.

Features 1x8 PLC Splitter

Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1260nm to 1650nm
Wide Operating Temperature: From -40℃to 85℃
High Reliability and Stability

1x8 Fiber Optic PLC Splitter Mini Steel Tube Type 0.9mm
