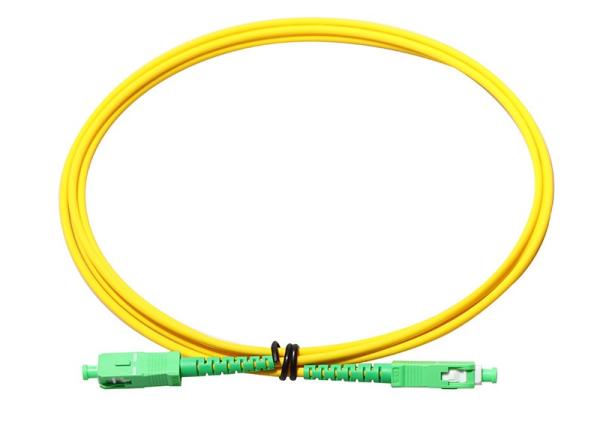

SC APC Fiber Optic Patch Cord For Telecommunication

Brand Name : DYS/OEM

Model Number : SC fiber patch cord

Certification : IS09001-2015.ROHS

Place of Origin : Guangdong, China (Mainland)

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram

Delivery Time : 3-5 work days

Packaging Details : Individual box or according to customer's request

Fiber Type : SM

Connector : SC/APC

Insertion loss : IL<0.2db

Return Loss : UPC 60dB

Function : equipment connecting

Application : Military industry

Color : Yellow

Operating Temperature : -40℃~80℃

Durability : ≥1000matings

Contact Now

Factory price fiber optic patch cord with SC APC connector

fiber optic patch cord feature

  1. Jacket material:OFNR,LSZH ,OFNP
  2. Fiber patch cord structure:Simplex,Duplex,Bunch type,Ribbon type.
  3. Connectors:0.9mm,2.0mm,3.0mm
  4. Compatible with ROHS

SC APC Fiber Optic Patch Cord For TelecommunicationSC APC Fiber Optic Patch Cord For Telecommunication

SC APC Fiber Optic Patch Cord For Telecommunication

PRODUCT PARAMETERS

Mode Single mode Multimode
Polish UPC APC PC
Insertion Loss ≤0.30dB ≤0.20dB ≤0.20dB
Return Loss ≥50dB ≥60dB ≥30dB
Test Wavelength 1310/1550nm 850/1310nm
Durability(500 Matings) ≤0.2dB
Operating Temperature -40℃~+60℃
Storage Temperature -45℃~+85℃
Fire Resistant IEC 60794-2-30
Standards-Compliant ROHS,IEC and GR-326

Fiber type Single mode: (1)9/125-G652D (2)9/125-G655 (3)9/125-G657A,G657A2 (4)9/125-G657B3
Multimode: (5)50/125-OM2 (6)62.5/125-OM1 (7)50/125-OM3 (8)50/125-OM4 (9)50/125-OM5
Fiber Brand YOFC, Corning, Sumitomo, Fujikura
Connector SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cord type Simplex ,Duplex
Cable diameter 0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm
Cable jacket PVC, OFNR, LSZH, OFNP
length(M) 0.5m,1m,2m,5m,10m,25m,50m,100m…Customized

SC APC Fiber Optic Patch Cord For Telecommunication

SC APC Fiber Optic Patch Cord For Telecommunication

SC APC Fiber Optic Patch Cord For Telecommunication

SC APC Fiber Optic Patch Cord For Telecommunication

SC APC Fiber Optic Patch Cord For Telecommunication

SC APC Fiber Optic Patch Cord For Telecommunication
