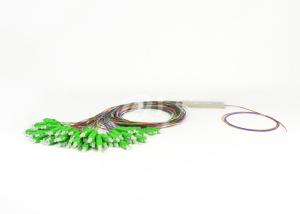

1*16 PLC Audio Optical Fiber Splitter SC/APC Connectors 0.9 / 2.0 / 3.0mm Cable

Name: 116 PLC Audio Optical Fiber Splitter SCAPC Connectors 09 20 30mm Cable
Brand: DYS/OEM
Price: 1 USD

Wholesale 1*16 PLC Audio Optical Fiber Splitter SC/APC Connectors 0.9 / 2.0 / 3.0mm Cable from china suppliers

Place of Origin : shenzhen

Brand Name : DYS/OEM

Certification : IS09001-2015.ROHS

Model Number : 1*16 PLC

MOQ : Negotiable

Price : Negotiable

Packaging Details : 1pcs/box

Delivery Time : 3-5 work days

Payment Terms : T/T or LC

Supply Ability : 500000PCS / Month

Model : 1*16 PLC

Certificate : IS09001-2015.ROHS

Brand : DYS/OEM

Connector Type : SC/APC

Contact Now

1*16 PLC Splitter / Optical Fiber Splitter With SC/APC Connectors With 0.9 / 2.0 / 3.0mm Cable

Quick Details

Brand Name: DYS
Model Number: 1*16 PLC
Insertion Loss≤0.5 dB
Return Loss(dB):UPC:50 APC:60
Operating Temperature(°C):-40~85
Connector Type:SC/APC

1. Specifications

Parameters	Specifications	Units	Remark
Channel Number	1×16
Operation Wavelength	1280 ~ 1650	nm
Insertion Loss	≤17.4	dB
Uniformity	≤1.5	dB
Polarization Dependent Loss	0.2	dB
Return Loss	≥50	dB
Directivity	≥55	dB
Fiber Type	G657A
Pigtail	Input: 0.9 /2.0/3.0mm Cable
Connector	SC/APC	N/A	<0.3dB

1.2 Environmental requirements

Parameters	Specifications	Units	Remark
Operating Temperature	-40 ~ +85	°C
Storage Temperature	-60 ~ +85	°C

1*16 PLC Audio Optical Fiber Splitter SC/APC Connectors 0.9 / 2.0 / 3.0mm Cable

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.
